The Blue Seal E506 is a 900mm electric range with a GN 2/1 static oven and five cooktop layouts. Choose radiant elements, a griddle, a mix of both, or sealed cast iron hot plates.
This range suits commercial kitchens that need a full cooktop and oven in one 900mm footprint. Every model shares the same oven, chassis and dimensions. Only the cooktop and electrical load change between models.
The static oven has 4.5kW bottom and 2.0kW top elements over a cast iron sole plate. A thermostat sets it from 50 °C to 320 °C. It takes GN 2/1 pans on four rack positions and comes with two racks.
Cooktop Options
- E506D – 6 x 2.4kW open radiant elements.

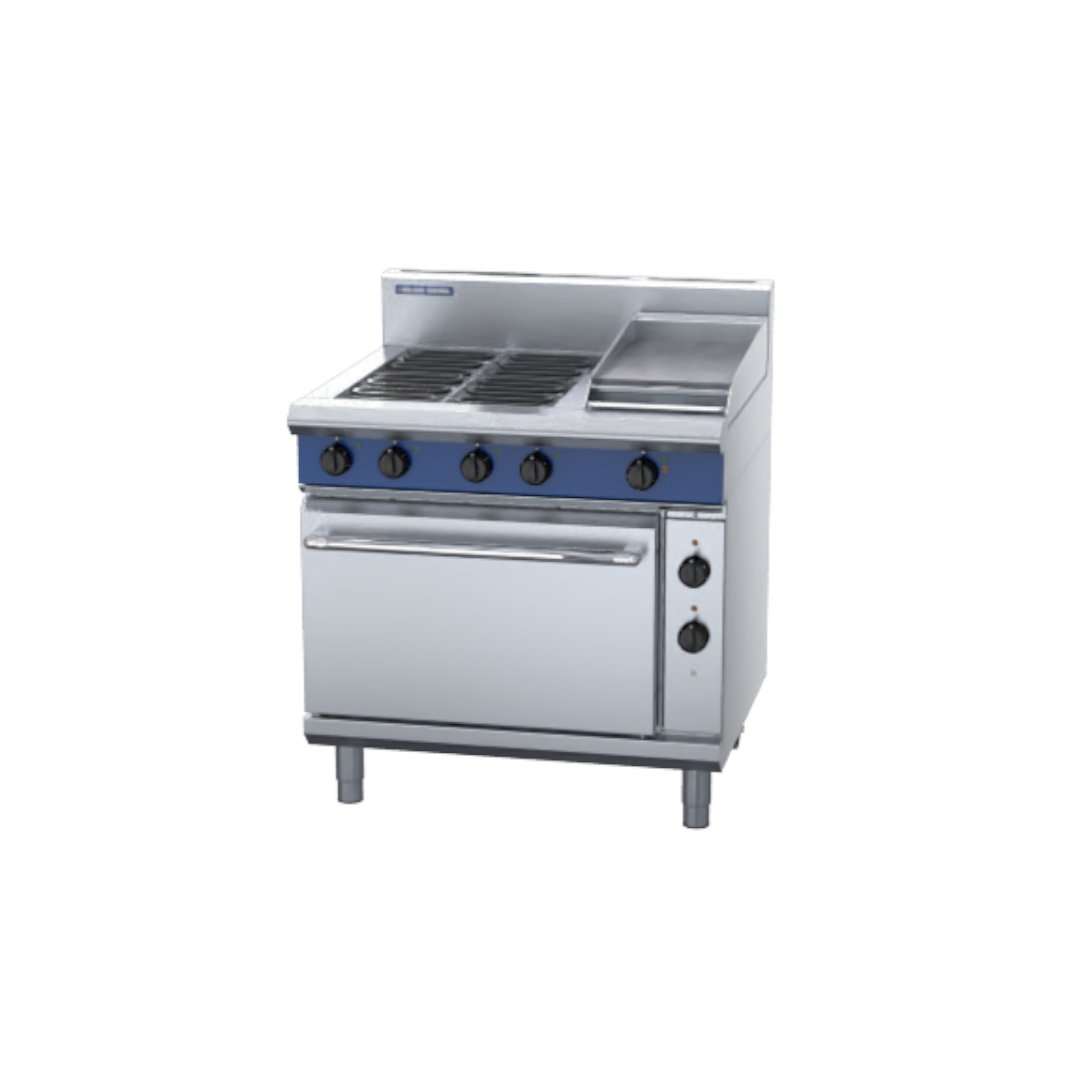

- E506C – 4 x 2.4kW radiant elements and a 300mm griddle.

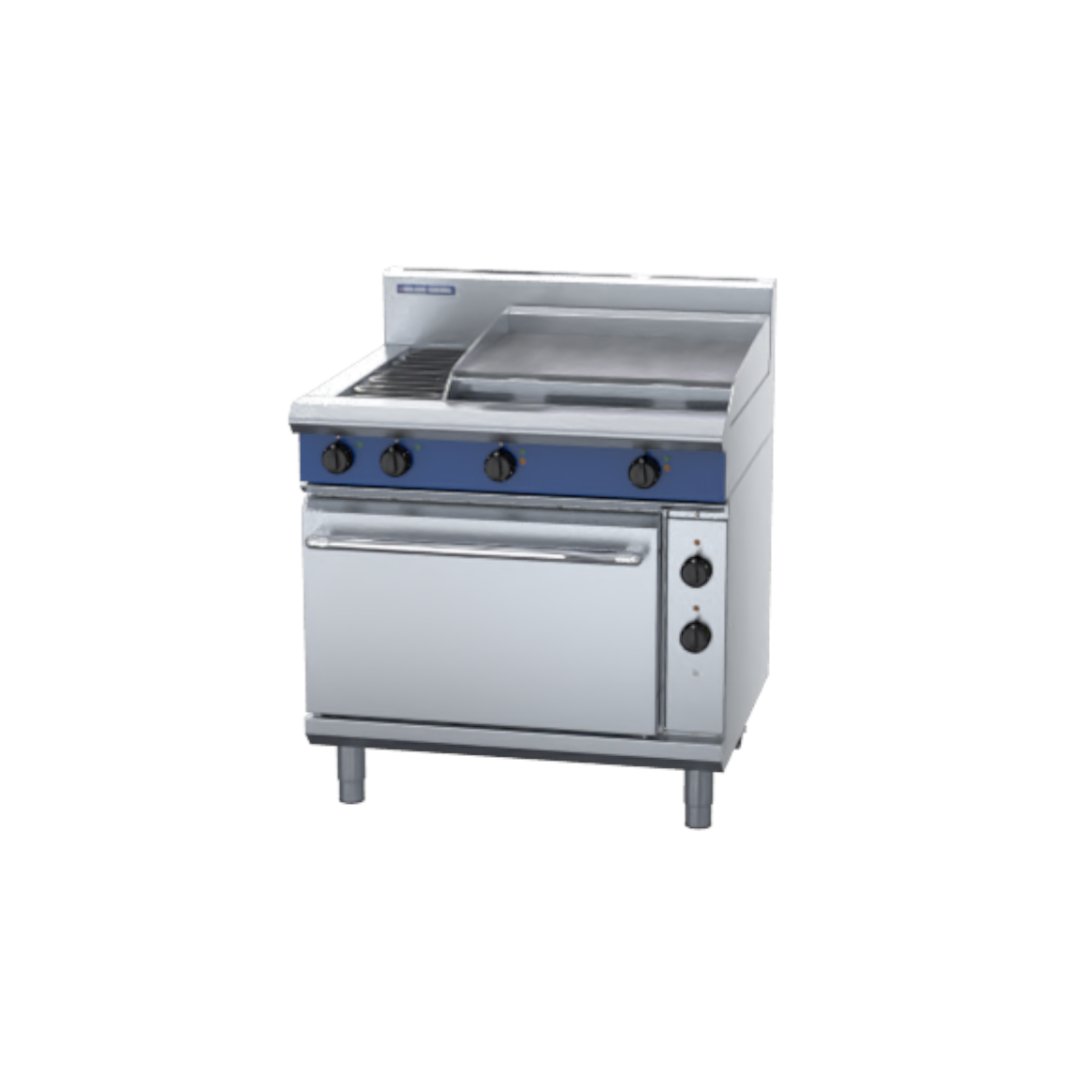

- E506B – 2 x 2.4kW radiant elements and a 600mm griddle.

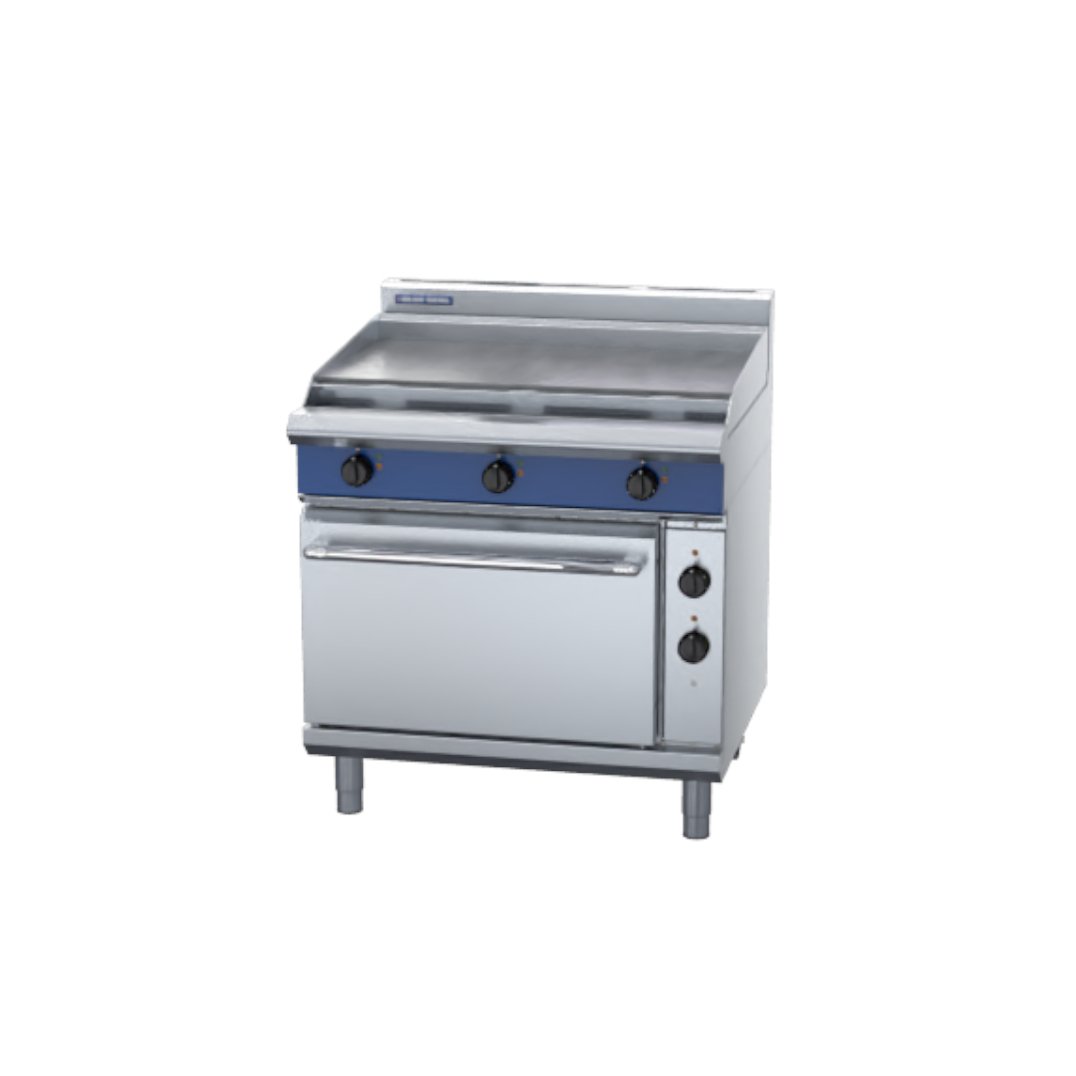

- E506A – 900mm griddle with 3 x 3.4kW elements.
- E506S – 6 x 2.6kW sealed cast iron hot plates.
Features
- GN 2/1 static oven – 6.5kW total, four rack positions, two racks supplied.
- Radiant elements – 2.4kW elements in welded frames with six heat settings, including simmer.
- Griddle plates – 12mm mild steel, 3.4kW and a 50 °C to 320 °C thermostat per 300mm section. Fitted on the right-hand side as standard.
- Sealed hot plates – 2.6kW cast iron elements with thermal protection and six-position switches (E506S).
- Stainless steel finish – 304 stainless steel bull nose hob, oven sides and door exterior.
- Oven construction – Fully welded vitreous enamelled liner and insulated drop-down door.
- Cool touch handle – Stainless steel door handle with reinforced control knobs.
- Easy to move – Adjustable front feet and two rear rollers.
Dimensions and Weight
- Width: 900mm
- Depth: 812mm
- Height: 915mm (1085mm including splashback)
- Oven Interior: 665mm W x 590mm D x 400mm H
- Net Weight: 195kg
- Packed Weight: 260kg
- Packed Volume: 1.03m³
Technical Specifications
| Model | Cooktop | Total Load |
|---|
| E506D | 6 x 2.4kW radiant elements | 20.9kW |
| E506C | 4 x 2.4kW radiant, 1 x 3.4kW griddle | 19.5kW |
| E506B | 2 x 2.4kW radiant, 2 x 3.4kW griddle | 18.1kW |
| E506A | 3 x 3.4kW griddle | 16.7kW |
| E506S | 6 x 2.6kW sealed hot plates | 22.1kW |
- Electrical supply: 400-415V, 50/60Hz, 3P+N+E
- Maximum current: E506D 29.3A (L1, L2), 28.3A (L3). E506S 31.0A (L1, L2), 30.0A (L3)
- Oven elements: 4.5kW bottom, 2.0kW top
- Oven thermostat: 50 °C to 320 °C
- Oven racks: 650mm x 600mm, two supplied
- Oven sole: Cast iron
- Chassis: Galvanised steel
Optional Extras
- 2.0kW hot plate elements in place of radiant elements
- Ribbed griddle plates
- Adjustable rear feet
- Castors
- Joining caps
Delivery: Ships direct from the supplier.
Made In: Australia and New Zealand
Brand: Blue Seal
Download the Blue Seal E506A, E506B, E506C and E506D sales brochure (PDF)
Download the Blue Seal E506S sales brochure (PDF)
